競技型產品規格

類型	規格	直徑	長度	六角	間隙	展開	點火位置	接地電極高度	終端形狀	電阻
IK01-24	ISO (SLANT ELEC.)	14	19	16	0.7	-1	0.5	2	S	5
IK01-27	ISO (SLANT ELEC.)	14	19	16	0.7	-1	0.5	2	S	5
IK01-31	ISO (SLANT ELEC.)	14	19	16	0.7	-1	0.5	2	S	5
IK01-34	ISO (SLANT ELEC.)	14	19	16	0.7	-1	0.5	2	S	5
IK02-24	ISO (STRAIGHT ELEC.)	14	19	16	0.7	-2.3	-0.8	0.7	S	5
IK02-27	ISO (STRAIGHT ELEC.)	14	19	16	0.7	-2.3	-0.8	0.7	S	5
IK02-31	ISO (STRAIGHT ELEC.)	14	19	16	0.7	-2.3	-0.8	0.7	S	5
IKH01-24	LONG REACH	14	26.5	16	0.7	-1	0.5	2	S	5
IKH01-27	LONG REACH	14	26.5	16	0.7	-1	0.5	2	S	5
IKH01-31	LONG REACH	14	26.5	16	0.7	-1	0.5	2	S	5
IQ01-24	SLANT ELEC.	14	19	16	0.7	-1	0.5	2	S	5
IQ01-27	SLANT ELEC.	14	19	16	0.7	-1	0.5	2	S	5
IQ01-31	SLANT ELEC.	14	19	16	0.7	-1	0.5	2	S	5
IQ01-34	SLANT ELEC.	14	19	16	0.7	-1	0.5	2	S	5
IQ02-24	STRAIGHT ELEC.	14	19	16	0.7	-2.3	-0.8	0.7	S	5
IQ02-27	STRAIGHT ELEC.	14	19	16	0.7	-2.3	-0.8	0.7	S	5
IQ02-31	STRAIGHT ELEC.	14	19	16	0.7	-2.3	-0.8	0.7	S	5
IW01-24	W-E	14	19	20.6	0.6	-1.5	0	1.6	RC	5
IW01-27	W-E	14	19	20.6	0.6	-1.5	0	1.6	RC	5
IW01-29	W-E	14	19	20.6	0.6	-1.5	0	1.6	RC	5
IW01-31	W-E	14	19	20.6	0.6	-1.5	0	1.6	RC	5
IW01-32	W-E	14	19	20.6	0.6	-1.5	0	1.6	RC	5
IW01-34	W-E	14	19	20.6	0.6	-1.5	0	1.6	RC	5
IW06-27	W-E NON RESISTOR	14	19	20.6	0.6	-1.5	0	1.6	S	0
IW06-31	W-E NON RESISTOR	14	19	20.6	0.6	-1.5	0	1.6	S	0
IW06-34	W-E NON RESISTOR	14	19	20.6	0.6	-1.5	0	1.6	S	0
IRE01-27	ROTARY ENGINE	14	21.5	20.6	0.7	-2.2	-0.7	0.8	RC	5
IRE01-31	ROTARY ENGINE	14	21.5	20.6	0.7	-2.2	-0.7	0.8	RC	5
IRE01-32	ROTARY ENGINE	14	21.5	20.6	0.7	-2.2	-0.7	0.8	RC	5
IRE01-34	ROTARY ENGINE	14	21.5	20.6	0.7	-2.2	-0.7	0.8	RC	5
IRE01-35	ROTARY ENGINE	14	21.5	20.6	0.7	-2.2	-0.7	0.8	RC	5
IRL01-27	ROTARY RX8 (LEADING)	14	21	20.6	1.1	-2.5	-0.5	1.6	S	5
IRL01-31	ROTARY RX8 (LEADING)	14	21	20.6	1.1	-2.5	-0.5	1.6	S	5
IRT01-31	ROTARY RX8 (TRAILING)	14	19	20.6	1.1	-2.5	-0.5	1.6	S	5
IRT01-34	ROTARY RX8 (TRAILING)	14	19	20.6	1.1	-2.5	-0.5	1.6	S	5
IA01-31	WITH DETONATION COUNTER	14	22	16	0.6	-1	0.5	1.9	S	5
IA01-32	WITH DETONATION COUNTER	14	22	16	0.6	-1	0.5	1.9	S	5
IA01-34	WITH DETONATION COUNTER	14	22	16	0.6	-1	0.5	1.9	S	5
IAE01-32	W/OUT DETONATION COUNTER	14	19	16	0.6	-1.3	0.5	2.1	S	5
IAE01-34	W/OUT DETONATION COUNTER	14	19	16	0.6	-1.3	0.5	2.1	S	5
IWM01-29	W-EM	14	19	20.6	0.6	-1.5	0	1.6	S	5
IWM01-31	W-EM	14	19	20.6	0.6	-1.5	0	1.6	S	5
IWM01-32	W-EM	14	19	20.6	0.6	-1.5	0	1.6	S	5
IWM01-34	W-EM	14	19	20.6	0.6	-1.5	0	1.6	S	5
IXU01-24	XU-E	12	19	16	0.6	-1.5	0	1.4	R	5
IXU01-27	XU-E	12	19	16	0.6	-1.5	0	1.4	R	5
IXU01-31	XU-E	12	19	16	0.6	-1.5	0	1.4	R	5
IXU01-34	XU-E	12	19	16	0.6	-1.5	0	1.4	R	5
IU01-24	U-E	10	19	16	0.6	-1.8	-0.3	1.2	R	5
IU01-27	U-E	10	19	16	0.6	-1.8	-0.3	1.2	R	5
IU01-31	U-E	10	19	16	0.6	-1.8	-0.3	1.2	R	5
IU01-34	U-E	10	19	16	0.6	-1.8	-0.3	1.2	R	5
*RU01-27	U-E (SURFACE)	10	19	16	1.1	-0.2	0	0	R	5
*RU01-31	U-E (SURFACE)	10	19	16	1.1	-0.2	0	0	R	5
*RU01-34	U-E (SURFACE)	10	19	16	1.1	-0.2	0	0	R	5

* 此型火星塞無銥合金電極。
間隙－1.1mm其間隙規格為1.0~1.1mm。
絕緣子凸出度－絕緣子頂端至火星塞螺牙本體之長度。
中心電極－頂端至螺牙本體之長度。

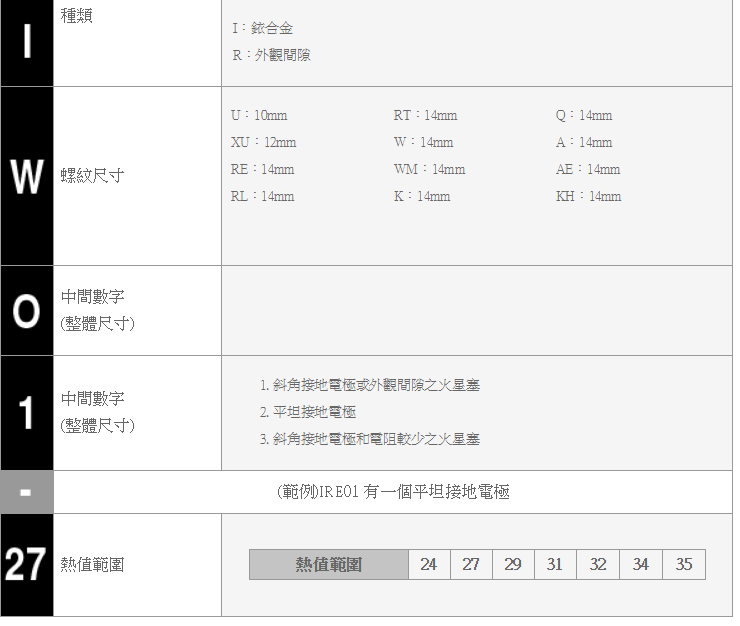

端子形狀－S：一體型　R：可拆式 RC：波浪紋螺帽　T：螺牙式。
